To use the piano remote controller, the musical instrument and the app must be configured so that they have the same settings.

Please follow the steps below to set up.

1.Tap “Piano Remote Controller” on the main menu.

2.Select synchronization of settings

• To load the instrument’s own settings into the app, tap “Load Instrument Settings”. The default value is "Load Instrument Settings".

• To send settings saved in the app to the instrument, tap “Send App Settings to Instrument” and select the settings to be sent to the instrument from “Previous data” in “Save Location” or storage locations 1 to 4.

3.Tap “OK”

• The settings on the musical instrument and app are configured in the same way using the specified method and the piano remote controller screen appears.

• Tap “Cancel” to return to the top menu in the app.

①

Back button: Returns to the main menu.

②

Displays the model name for the connected musical instrument.

③

Save button: Brings up the screen for saving settings.

④

Auto Sync button: When on, the settings made on the instrument are always applied in the app (the default setting is On).

Sync on: The setting values of the instrument are periodically loaded and the application display is updated.

Sync off: The application does not read the setting values of the instrument.

• The default value of the sync button is on, but when connected via Bluetooth Low Energy MIDI (wireless connection), sync is always set to off.

Caution when connecting via Bluetooth Low Energy MIDI

⑤

Help button: Displays the user guide

⑥

Settings

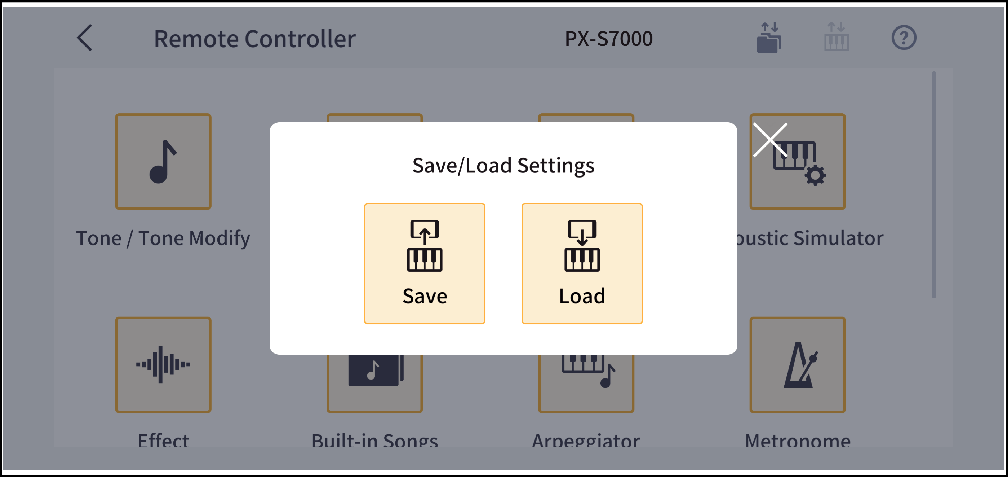

Saving settings

You can save the settings you have made in the application.

Select a save location from 1, 2, 3, or 4. Tap “Cancel” to return to the previous screen without saving. Tap “OK” to save the setting values and return to the previous screen.

About the settings

①

Tone / Tone Modify

Multiple tone parameters can be changed at once while checking the setting values from the application screen.

Setting the tone / tone modify settings

②

Keyboard / Sound Source

Configures settings such as the touch response (a function that assigns the strength of the player’s touch based on how hard keys are pressed), scale and pitch for the entire keyboard or sound source.

Configuring the keyboard/sound source

③

Pedal and others

Configures the operation of the pedals and the pitch bend wheel and knob on the left end of the musical instrument keyboard.

Configuring the pedals/wheels/knobs

④

Acoustic Simulator

Sets the resonance diffusion and depth from features such as the keyboard sound and damper pedal.

Adjusting the characteristics of acoustic piano sounds

⑤

Effect

Set when applying effects such as reverb and diffusion to sounds.

Configuring effects

⑥

Built-in Songs

You can play demo songs built into the instrument, songs stored on your smart device, or songs recorded on a MIDI recorder, and use those songs for practice.

Listening to/practicing built-in songs

⑦

MIDI Recorder

Set up recording and playback of instrument performances with the built-in MIDI recorder.

Recording/playing back using the MIDI recorder

⑧

Arpeggiator

This function automatically plays a chord accompaniment.

Using the arpeggiator

⑨

Metronome

Turns the metronome on and off and sets the tempo, etc.

Using the metronome

⑩

Piano Position

The sound can be set according to the location in which the instrument is placed.

Setting up the piano position

⑪

EX Button

From the app, you can assign commonly used functions to the EX1 and EX2 buttons on the instrument.

Configuring EX button settings

⑫

Mixer

Adjustments such as playback volume and chords can be operated on a single screen without having to move to the screen for each item.

Setting up the mixer

⑬

MIDI

Configures settings such as the transmission channel and turning MIDI data output from the musical instrument ON/OFF.

Configuring the MIDI settings
