Tap Remote Controller under Performance Tools on the home screen or the remote control icon on the navigation bar to display the following screen.

①

Back button: Returns to the main menu.

②

Displays the model name for the connected musical instrument.

③

Save/Load Settings button: Calls up the screen for saving and loading setting values

④

Auto Sync button: When on, the settings made on the instrument are always applied in the app (the default setting is On).

Sync on: The setting values of the instrument are periodically loaded and the application display is updated.

Sync off: The application does not read the setting values of the instrument.

• When connected via Bluetooth Low Energy MIDI (wireless connection), synchronization is fixed to Off.

Caution when connecting via Bluetooth Low Energy MIDI

⑤

Manual Sync button: Tap this button to apply the settings made on the instrument in the app.

⑥

Help button: Displays the user guide

⑦

Settings

Saving or loading setting values

Settings made on the app can be saved and loaded to your instrument.

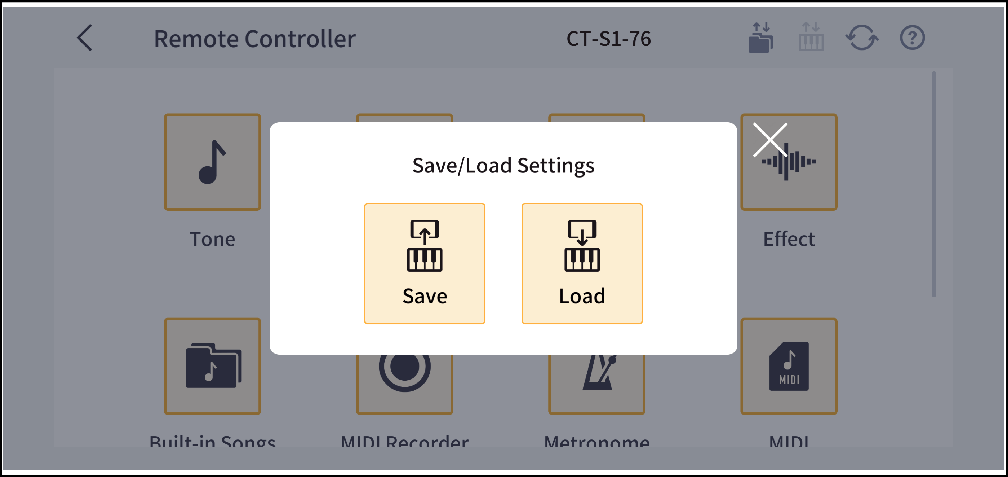

Tap the “Save/Load Settings” button to display the following screen.

Save: The “Save setting values” screen will appear.

Load: The “Load setting values” screen will appear.

How to save setting values

On the “Save settings” screen that appears when you tap “Save”, select where to save from 1, 2, 3 or 4. “Cancel”: Tap to return to the previous screen without saving. “Save”: Tap to save setting values to the selected entry and return to the previous screen.

• When you select an entry where data is already saved, a “Confirm overwrite save” screen will appear, and if you wish to overwrite the data, tap “OK.”

• To rename the save entry, tap the pencil icon on the right to display the “Rename” screen and edit the name. Up to 60 characters can be entered.

To load setting values

On the “Load Settings” screen that appears when you tap “Load”, select the storage area you want to load from 1, 2, 3 or 4. Tap “Cancel” to return to the previous screen without loading. Tap “Load” to load the setting values stored in the selected save area to the connected instrument.

• If an empty save entry is selected for loading, the instrument will be loaded with default setting values.

About the settings

①

Tone

Sets the tone of the musical instrument.

Setting tones and layers

②

Keyboard / Sound Source

Configures settings such as the touch response (a function that assigns the strength of the player’s touch based on how hard keys are pressed), scale and pitch for the entire keyboard or sound source.

Configuring the keyboard/sound source

③

Pedal and others

Sets the function and effect of the pedal.

Setting up pedals and other settings

④

Effect

Set when applying effects such as reverb and diffusion to sounds.

Configuring effects

⑤

Built-in Songs

You can play back songs built into the digital piano, songs recorded on a MIDI recorder, or user songs, and practice using these songs.

Listening to/practicing built-in songs

⑥

MIDI Recorder

Set up recording and playback of instrument performances with the built-in MIDI recorder.

Recording/playing back using the MIDI recorder

⑦

Metronome

Turns the metronome on and off and sets the tempo, etc.

Using the metronome

⑧

MIDI

Configures settings such as the transmission channel and turning MIDI data output from the musical instrument ON/OFF.

Configuring the MIDI settings

⑨

MY SETUP

You can store and recall instrument setups (complete set of tones and other settings).

Save/load instrument settings (MY SETUP)
