CDP-S90/CDP-S100/CDP-S105/CDP-S110/CDP-S150/CDP-S160/CDP-S350/CDP-S360/PX-S1000/PX-S1100/PX-S3000/PX-S3100 users

To use the piano remote controller, the musical instrument and the app must be configured so that they have the same settings.

Use the procedure below to configure the settings.

1.Tap “Piano Remote Controller” on the main menu.

2.Select synchronization of settings

p16_1
  • To load the instrument’s own settings into the app, tap “Load Instrument Settings”. The default value is "Load Instrument Settings".
  • To send settings saved in the app to the instrument, tap “Send App Settings to Instrument” and select the settings to be sent to the instrument from “Previous data” in “Save Location” or storage locations 1 to 4.

3.Tap “OK”

  • The settings on the musical instrument and app are configured in the same way using the specified method and the piano remote controller screen appears.
p25_3
  • Tap “Cancel” to return to the top menu in the app.

Back button: Returns to the main menu.

Displays the model name for the connected musical instrument.

Save button: Brings up the screen for saving settings.

Auto Sync button: When on, the settings made on the instrument are always applied in the app (the default setting is On).

icon_Sync-on_ver2 Sync on: The setting values of the instrument are periodically loaded and the application display is updated.

icon_Sync-off_ver2 Sync off: The application does not read the setting values of the instrument.

  • The default value of the sync button is on, but when connected via Bluetooth Low Energy MIDI (wireless connection), sync is always set to off.

Help button: Displays the user guide

Settings

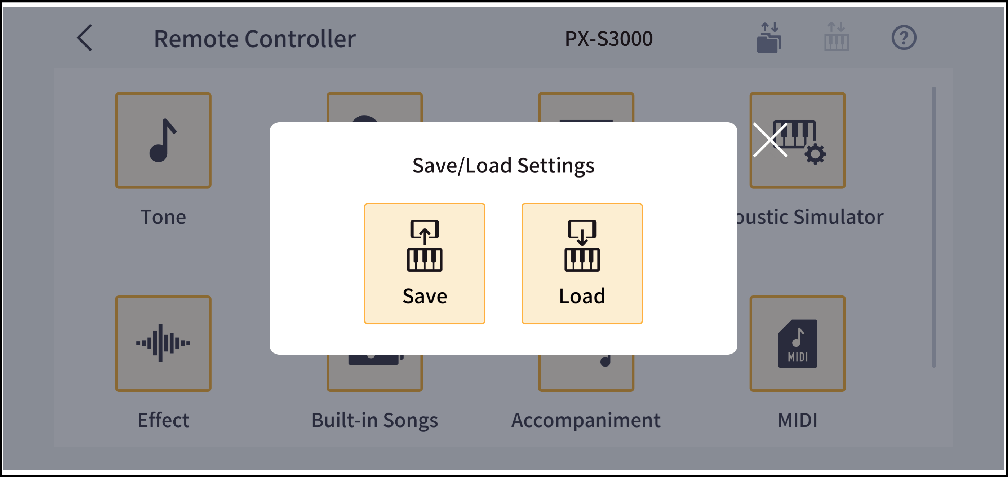

Saving settings

You can save the settings specified in the app.

Tap the Save button to display the following screen, then follow the on-screen instructions.

p26.1

Select a save location from 1, 2, 3, or 4. Tap “Cancel” to return to the previous screen without saving. Tap “OK” to save the setting values and return to the previous screen.

About the settings

Tone

Sets the tone of the musical instrument.

Keyboard / Sound Source

Configures settings such as the touch response (a function that assigns the strength of the player’s touch based on how hard keys are pressed), scale and pitch for the entire keyboard or sound source.

Pedal and others

Configures the operation of the pedals and the pitch bend wheel and knob on the left end of the musical instrument keyboard.

Acoustic Simulator

Sets the resonance diffusion and depth from features such as the keyboard sound and damper pedal.

Effect

Set when applying effects such as reverb and diffusion to sounds.

Built-in Songs

This can be used to play the demo songs built into the musical instrument, songs stored on a smart device and songs recorded by the MIDI recorder, and to practice using those songs.

MIDI Recorder

Configures playback and recording for musical instrument performances using the built-in MIDI Recorder.

Accompaniment

Configures the function for automatically playing an accompaniment. This allows you to play with backing from an ensemble, as with a backing band.

Metronome

Turns the metronome on and off and sets the tempo, etc.

MIDI

Configures settings such as the transmission channel and turning MIDI data output from the musical instrument ON/OFF.
